Neuroimaging in Patients with Abnormal Blood Glucose Levels

Hemichorea-Hemiballismus in Non-Ketotic Hyperglycemia

HC-HB refers to an involuntary, nonrhythmic, and poorly patterned movement disorder that involves one side of the body.^16,17 It most commonly results from a vascular insult involving the contralateral basal ganglia.^16⇓–18 NKHG is the second most common cause for such presentation.¹⁶ Occasionally, HC-HB may result from neoplastic or infective conditions involving the brain.^17,19

HC-HB in association with hyperglycemia is well recognized.⁸ It has been predominantly reported in elderly patients with NIDDM and is more common in Asians.^17,18,20

Patients present with acute onset of HC-HB, which is often unilateral but may be generalized.^8,20 The abnormal movements may be continuous or intermittent and disappear during sleep.^8,21 Laboratory findings confirm poorly controlled diabetes with raised blood glucose and HbA1C levels and absence of blood and urinary ketones. The serum osmolality is often elevated.¹⁹ Correction of underlying hyperglycemia is usually curative, leading to rapid cessation of abnormal movements within hours to a few days.^8,18 Occasionally, however, symptoms may persist for months and require additional suppressant therapy.⁸

The abnormal movements are thought to be secondary to reduced cerebral perfusion, presumably caused by hyperviscosity secondary to hyperglycemia.^16,19 This is supported by recent observations that raised plasma glucose levels directly correlate with cerebral hypoperfusion.²² Ensuing anaerobic metabolism leads to depletion of GABA, which is used as a metabolite to generate energy.¹⁹ Because GABA is an inhibitory neurotransmitter, its depletion causes increased thalamocortical drive, resulting in HC-HB.¹⁶

The pathogenesis of the imaging findings in these patients is controversial and is further compounded by variable histopathology results from different studies.^8,16 Focal hemorrhage and calcification were initially proposed to explain the imaging pattern on CT and MR imaging. However, these are not consistent features on histopathology studies.⁸ The imaging patterns on MR imaging and resolution of findings on follow-up imaging in most cases also do not favor hemorrhage or calcification as a common finding.¹⁶ Some authors have reported the presence of gliotic tissue with abundant gemistocytes (a form of reactive astrocytes), which may account for the T1 shortening on MR imaging. These usually appear during acute injury and can persist for years.^16,21 These astrocytes can accumulate manganese after periods of brief ischemia, which presumably results from a combination of underlying hyperviscosity and chronic vascular disease.^8,16,23,24 This is supported by similar signal changes in animals and humans after episodes of transient, nonlethal ischemia, unrelated to hyperglycemia.²⁵

The gemistocyte theory does not explain the changes seen on NCCT, leading some authors to speculate that the findings on CT, MR imaging, and associated HC-HB may reflect different pathologic mechanisms running in parallel.²¹ It is possible that the pathogenesis of imaging findings in NKHG is more complex, and transient ischemia may not be the only factor. Hyperglycemia is known to cause endothelial dysfunction and increased oxidative stress in ischemic brain tissue.²⁶ These may also contribute to changes seen on imaging, though their precise role is yet to be established.

NCCT often reveals abnormal hyperattenuation, predominantly involving the putamen contralateral to the symptomatic side (Fig 1). The caudate and globus pallidus may be involved.¹⁹ Patients with ballism may show bilateral abnormalities that can be asymmetric. There is no surrounding edema or mass effect.⁸ Follow-up imaging may show resolution of changes after correction of hyperglycemia.¹⁹ Occasionally, the initial scan may be normal.^8,19

• Download figure
• Open in new tab
• Download powerpoint

Fig 1.

Axial NCCT image reveals asymmetric hyperattenuation involving the lentiform and caudate nuclei bilaterally, more pronounced on the left side.

On NCCT, the findings are fairly characteristic in the appropriate context, though a similar appearance may occur with hemorrhage or asymmetric calcifications.¹⁹ Patients receiving intra-arterial reperfusion therapy for stroke can also show transient hyperattenuation of the lentiform and insular cortex secondary to interstitial contrast extravasation.²⁷ Finally, because the hyperdensities in diabetic patients with HC-HB may resolve slowly or persist for years,²⁸ these may reflect previous hyperglycemia-induced injury.

MR imaging may also reveal abnormal putaminal signal with or without involvement of the caudate and globus pallidus.⁸ As with CT, changes may be bilateral.¹⁹ Sporadic cases with isolated involvement of subthalamic nuclei have been reported.¹⁷ The involved regions show T1 shortening.²⁹ The signal changes on T2WI are variable, and the lesions may manifest either T2 shortening or prolongation (Figs 2 and 3).^17,19 Restricted diffusion and signal loss on gradient-echo images have been reported occasionally.^19,30,31 Some authors have reported abnormal mineral deposition in the affected regions on susceptibility-weighted MR imaging.¹⁶ Additionally, dilated vessels over the affected side have been reported and are presumed to reflect underlying ischemia.²⁹

• Download figure
• Open in new tab
• Download powerpoint

Fig 2.

Axial noncontrast T1WI in a patient with HC-HB reveals T1 shortening in the left lentiform. T2WI at the same level (B) reveals mild T2 prolongation.

• Download figure
• Open in new tab
• Download powerpoint

Fig 3.

Axial T1WI (A) and T2WI (B) at the level of basal ganglia reveal T1 and T2 shortening involving the right corpus striatum.

Data are limited on 1H-MR spectroscopy findings, with the reported cases showing reduction of NAA/Cr ratio, elevation of Cho/Cr ratio, and presence of a lactate peak.^8,23 Similarly, sporadic case reports of SPECT show hypoperfusion within the basal ganglia, corresponding to the symptomatic side.¹⁹

The imaging findings are usually reversible, though they lag behind clinical improvement. Occasionally, the abnormalities persist and have been reported up to 6 years after the initial presentation.²⁸

Besides HC-HB, T1 shortening of the basal ganglia may occur with chronic liver disease, manganese deposition, neurofibromatosis type 1, and calcifications.³² However, a quick review of the patient chart usually excludes most of these considerations.

Seizures in Non-Ketotic Hyperglycemia

Seizures are relatively common in patients with NKHG. ³³ These are often focal, with the most common subtype being focal motor seizure with or without secondary generalization.^34⇓–36 Less frequently, occipital lobe seizures or epilepsia partialis continua may also occur.^10,33,35 MR imaging in these patients may show areas of transient T2 prolongation, which are thought to be secondary to the ictus and may be seen with seizures unrelated to hyperglycemia. However, some authors have reported subcortical areas of T2 shortening in a subset of patients with NKHG, which often correlate with localization of ictal focus on EEG studies and regress after normalization of hyperglycemia.³⁷ Therefore, these are more likely to be related to the underlying hyperglycemic state.

As with HC-HB, these patients also show evidence of poorly controlled diabetes and underlying hyperosmolality.¹⁰ The HbA1C is often elevated, attesting to long-term hyperglycemia.^33,34 In some cases, the seizures may be the first presentation and uncover underlying diabetes.^34,35

Similar to HC-HB, correction of underlying hyperglycemia is curative.^10,33 Anti-epileptic drugs are often not required because the seizures respond promptly to correction of hyperglycemia.³⁵ Occasional cases may require short-term phenobarbital or valproic acid.³⁵ Phenytoin is avoided because it worsens glycemic control and can aggravate seizures.³⁴

A predilection for occipital lobe involvement exists.^34,36 Patients often present with visual symptoms such as blurring, field defects, and hallucinations. The parietal, temporal, and perirolandic cortex also may be involved.^33,37

It is unclear how hyperglycemia precipitates seizures. Elevated blood glucose levels have a pro-convulsant effect and reduce seizure threshold.^34⇓–36 As pointed out earlier, a hyperglycemic state also induces cellular anaerobic metabolism and depletes GABA, which is an inhibitory neurotransmitter.³⁵ The presence of concurrent ketoacidosis is thought to offer some protection against seizures because ketone bodies can serve as substrate for GABA generation.³⁶

The reason for subcortical T2 shortening on imaging is also unclear. Postulated mechanisms include mineral deposition and ischemia.^33,34,38 A hypointense signal on the gradient-echo image would support free radical accumulation.³³

NCCT is often negative, though rare cases with both HC-HB and seizures may show basal ganglia hyperattenuation.^38,39 On MR imaging, the involved regions are usually isointense on T1WI but may show focal T2 prolongation in the cortex and T2 shortening in the underlying WM.^33⇓–35 Similar hypointense subcortical signal is also noted on gradient-echo images.³³ Associated cortical swelling is often appreciable on T2WI/ FLAIR images. Transiently reduced ADC values and focal cortical or leptomeningeal enhancement may occur.^33,35 These findings often completely resolve over a period of months, though some cases show focal gliosis.³³

Sporadic reports of ¹H-MR spectroscopy have described reduced NAA in the involved regions.³⁸ There are few case reports of ictal hyperperfusion in the involved regions on technetium Tc99m hexamethylpropyleneamine oxime SPECT imaging, in contrast to HC-HB in a similar subgroup of patients, which shows hypoperfusion.^19,34,38

Besides NKHG, subcortical T2 shortening may also be seen in viral encephalitis, meningitis, hypoxic insult, and Moyamoya disease.³³ Overlying leptomeningeal enhancement, if present, would add metastasis, sarcoidosis, and lymphoma to the list of differential considerations. However, a known hyperglycemic state and supportive EEG findings may help to clinch the diagnosis.

Neonatal Hypoglycemia

Transient hypoglycemia is relatively common in neonates as they transition from intrauterine to extrauterine environment.⁵ The incidence of neonatal hypoglycemia is not clearly defined because there is no absolute consensus on the exact blood glucose value to define hypoglycemia.⁴ The plasma glucose level used to define hypoglycemia varies between 25–46 mg/dL in different studies, though most researchers agree that a level <36 mg/dL within first 2–3 hours after birth requires intervention.^14,40,41

Neuronal damage secondary to hypoglycemia is uncommon but may occur.^4,5 These children with this damage often present with nonspecific symptoms such as seizures, lip-smacking, poor feeding, hypotonia, cyanosis, and vomiting.^4,5,14,41

Neonates often have development of hypoglycemia within hours to days of birth. Alkalay et al,¹⁴ in their review of 23 patients, found that the mean age at presentation was 30 hours and varied between 1–72 hours. Because there is a broad list of differentials for seizures in this age group, these children often undergo a battery of tests to exclude metabolic, congenital, and infective causes before imaging is considered. Transcranial sonography is usually the initial imaging study and is performed to exclude hypoxic or hemorrhagic insults. However, it has low sensitivity for detecting hypoglycemic brain injury.¹⁴ Because the clinical diagnosis of hypoglycemia can be made with a simple strip test, imaging with CT/MR is often performed to assess the extent of injury and prognosticate final recovery rather than to confirm the diagnosis.

Neuroimaging findings in neonatal hypoglycemia were first reported by Spar et al⁴² in 1994. Since then, similar findings have been described in small patient cohorts by various authors.^4,14,43 A predilection for occipital and parietal lobe involvement exists, the exact reason for which is unclear.^4,5,14 Some authors have attributed it to relatively higher glucose utilization in this region from intensive axonal growth.¹⁴ Others attribute the changes to a variable distribution of excitatory neurotransmitters in different parts of brain.^4,41 The remaining cerebral hemispheres, corticospinal tracts, corpus callosum, and deep gray nuclei also may be affected.^4,5,14,40 Posterior fossa involvement is rare.⁵ The pattern of brain injury is independent of underlying etiology, essentially implicating hypoglycemia as the culprit.⁴

On CT, the involved regions appear hypoattenuated in the acute phase and are often bilateral. In fact, bilateral occipital involvement is considered by some to be specific for hypoglycemia-induced injury. The gray-white interface may be involved.^14,41,43 Lesions are often bilateral.^33,35 Hemorrhage has not been reported on CT studies. Follow-up imaging usually shows volume loss.⁴³

On MR imaging, variable signal is noted on most sequences. The involved cortex is usually isointense on T1WI but may show focal T1 shortening. Similarly, the cortex usually shows T2 prolongation, but focal T2 shortening may occur.^4,14 Underlying WM involvement manifests as areas of T1 and T2 prolongation.⁴ Follow-up imaging often shows parenchymal atrophy. Cystic encephalomalacia may occur.⁴ Some patients may have transient abnormalities that resolve on follow-up.¹⁴ Not surprisingly, these patients have less severe hypoglycemia and present early.¹⁴

DWI is most sensitive for identification of parieto-occipital injury, especially in the first 6 days after birth (Fig 4).⁴⁴ In the acute phase, there is restricted diffusion with correspondingly reduced ADC values.¹⁴ Some authors think that the degree of restricted diffusion may correlate with parenchymal damage on follow-up.⁴⁵ Burns et al⁵ described presence of focal WM hemorrhagic lesions in up to 30% of their cases. However, these findings have not been reported in other studies. The reason for this discrepancy is unclear.

• Download figure
• Open in new tab
• Download powerpoint

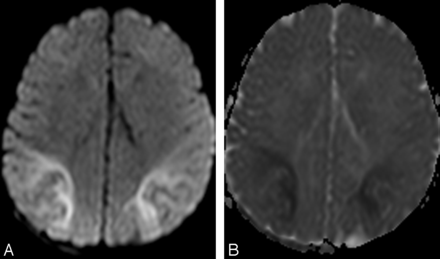

Fig 4.

Axial DWI (A) and ADC image (B) in a hypoglycemic neonate reveal restricted diffusion involving predominantly the parietal and occipital regions with corresponding ADC hypointensity.

Hypoglycemia potentiates hypoxia-induced damage, and a combination of the 2 leads to worse outcomes than hypoxia alone.^4,46,47 These children often present with nonspecific symptoms such as seizures, lip-smacking, poor feeding, hypotonia, cyanosis, and vomiting.⁴

There is scarce literature on perfusion imaging and spectroscopy findings in these patients. Kim et al⁴⁵ reported reduced NAA with the presence of a lactate peak in their patient, with further reduction in the NAA peak on follow-up 1H-MR spectroscopy on the 16th day.

On imaging, the most important differential consideration is hypoxic encephalopathy, either alone or in combination with hypoglycemia. When a predominantly posterior distribution is seen, the diagnosis of hypoglycemic injury is relatively straightforward. However, with diffuse bilateral involvement, it may be extremely difficult to exclude hypoxia or a combined insult. A review of the patient's Apgar score, plasma glucose, and arterial blood gas levels may provide important clues.

Prognosis in these children depends on prompt recognition and treatment of hypoglycemia. However, the long-term prognosis can be variable and correlates with WM damage at MR imaging.⁵ The overall outcome may be complicated by occipital lobe epilepsy, visual disturbances, mental retardation, cerebral palsy, and microcephaly.^5,14,40

Adult Hypoglycemia

According to the American Diabetes Association,⁴⁸ hypoglycemia and severe hypoglycemia are defined as plasma glucose levels <70 mg/dL (3.9 mmol/L) and 40 mg/dL (2.2 mmol/L), respectively. Hypoglycemia is more common in diabetic patients and can occur as a complication of therapy with insulin or long-acting sulfonylurea drugs. Symptomatic hypoglycemia is believed to affect 2% of diabetic patients annually and is associated with up to 4% of deaths in patients with type 1 diabetes.^6,11,49 Other causes include exogenous administration of insulin, which may be suicidal or accidental, insulin-secreting tumors, sepsis, Addison disease, and hepatic or renal failure.^6,7,11

Hypoglycemic symptoms can be divided into autonomic, which include sweating, trembling, palpitations, and anxiety and neuroglycopenic, which include weakness, confusion, personality changes, seizures, and transient memory loss.^6,7,15,50,51 Severe hypoglycemia may present with altered mental state or coma.^6,52⇓–54 Occasionally, patients may develop hemiparesis or quadriparesis and mimic a stroke.^12,51,53 In general, autonomic symptoms usually develop before neuroglycopenic symptoms. However, some diabetic patients may develop “hypoglycemic unawareness,” and autonomic symptoms may not develop or may remain unrecognized.¹¹

Energy failure leading to loss of cellular hemostasis is believed to be a key factor in hypoglycemia-induced brain damage.^6,52⇓–54 Many authors have also pointed out the role of aspartate-induced injury in hypoglycemia, in contrast to hypoxia, in which the neuronal damage is secondary to glutamate.^15,52,55,56 Absence of glucose results in accumulation of oxaloacetate, which in turn leads to generation of excess aspartate. Aspartate is a known neurotoxin and has been shown to cause preferential neuronal necrosis in the cerebral cortex, neostriatum, and hippocampus.^6,11,15,50

Hypoglycemia was initially reported to predominantly involve the cortex, neostriatum, and hippocampus.^{6,11,12,54,57} However, many authors have also reported predominant WM involvement, mainly affecting the centrum semiovale, corona radiata, internal capsule, an splenium of the corpus callosum.^{7,11,12,53,54,56} In fact, involvement of the WM is now thought to be earlier and more common than gray matter involvement.^52,53 Some cases may show diffuse gray matter and WM involvement.^6,7,53,54 The thalamus, brain stem, and cerebellum are invariably spared, and this may help to differentiate hypoglycemia from hypoxic injury, which often involves the thalamus.^6,52,55,56

Because these patients often present in an altered mental state, underlying hypoglycemia may not be apparent. NCCT in these patients is often unremarkable.^15,49,50 Some cases may show nonspecific WM hypodensities or diffuse cerebral edema in the acute stage and parenchymal volume loss on follow-up.^15,49

On MR imaging, the earliest changes are seen on DWI sequences.^52⇓–54 The involved regions show restricted diffusion with corresponding ADC hypointensity.^6,7,12,15,53 The extent of these abnormalities depends on severity and duration of hypoglycemia.^6,49,52,57 Changes are usually bilateral, though bilaterally asymmetric, or, rarely, unilateral lesions, may occur.^11,52,57 Reduction in ADC values has been shown to follow establishment of cerebral isoelectricity, a process that may be asynchronous. This may explain asymmetric lesions in a given patient.^11,53,58

Experimental studies on rats have shown that reduction in ADC values follows cerebral isoelectricity and may quickly normalize after glucose infusion.⁵¹ It has also been shown that hypoglycemia-induced neuronal damage does not occur until the EEG becomes iso-electric and is independent of blood glucose level.⁵² Establishment of cerebral isoelectricity may be asynchronous, and this may explain asymmetric lesions in a given patient.^9,46

Contrary to the above observations, Schmidt et al¹¹ recently showed that short-term severe hypoglycemia by itself may not show any visible diffusion abnormalities. Although they reported findings in a small number of patients (n = 10), none of whom lost consciousness, the findings may lead one to speculate that individual susceptibility and associated comorbidities may also influence imaging findings and clinical outcomes.

Patients with hypoglycemia also may show T2 prolongation in both cortex and WM.⁷ These regions are usually isointense on T1WI.⁴⁹ However, Fujioka et al⁵⁵ showed persistence of both T1 and T2 shortening in 4 patients who entered a persistent vegetative state. Hemorrhagic lesions have not been reported.^6,50,55 Post-contrast enhancement is usually absent but may occur.^6,49,50

Sporadic reports on perfusion studies show either no significant change or slightly increased perfusion in affected regions.^54,57,59 Similarly, only sporadic reports about ¹H-MR spectroscopy exist and show mildly reduced NAA and preservation of choline and creatine.⁵⁷ No lactate peak is seen, probably because of the absence of glucose.^55,60 This may help to distinguish hypoxic from hypoglycemic insults.

On the basis of the topographic distribution of the signal abnormalities, 3 imaging patterns have been described.⁵² These include 1) predominant gray matter involvement affecting the cortex, neostriatum, and hippocampi; 2) predominant WM involvement affecting the periventricular WM, internal capsule, and splenium of corpus callosum (Fig 5); and 3) mixed pattern, involving both the gray matter and WM (Fig 6).

• Download figure
• Open in new tab
• Download powerpoint

Fig 5.

Axial DWI in a hypoglycemic patient reveals restricted diffusion involving the corona radiata bilaterally. The splenium was spared (not shown).

• Download figure
• Open in new tab
• Download powerpoint

Fig 6.

Axial DWI (A) and ADC image (B) in another hypoglycemic patient show restricted diffusion involving the cortex, hippocampi (arrowheads in A), and internal capsules (arrows in A) bilaterally with correspondingly reduced ADC values.

The division of patients on the basis of these imaging patterns is of unclear significance.^52,53 Patients with focal involvement of the internal capsule, corona radiata, or splenium usually have a good prognosis.^6,7,53,54 These lesions usually resolve promptly after restoration of blood glucose, though they tend to follow clinical symptom resolution.^6,7,12,15,54 Atay et al⁵⁶ reported near total resolution of DW abnormalities in their patient as early as 2 hours after blood glucose levels were restored.

Patients with extensive WM involvement show variable response.⁵² The prognosis in these cases varies between complete recovery and persistent vegetative state.⁵³ Clinical improvement, if it occurs, is usually delayed by weeks.^6,17 Involvement of the neostriatum and diffuse cortical lesions often portend dismal outcome.^{7,49,50,52,57} Failure of lesions to regress on follow-up imaging is also associated with poor prognosis.⁶

There is no satisfactory explanation as to why a subgroup of patients with hypoglycemia has hemiparesis and a good prognosis, whereas others show diffuse WM lesions and a variable prognosis, and still others have diffuse gray matter involvement and an invariably poor prognosis. Some authors believe that these probably represent a spectrum of injury and that focal WM changes usually result from transient hypoglycemia.^15,52 However, some other authors believe that they may be attributable to different pathophysiologies.^7,12,52 Regardless of the cause, imaging subgroups in hypoglycemia do exist, and DWI probably has some prognostic value.

Patients with extensive cortical and WM involvement often present a diagnostic challenge. Similar changes can also occur with hypoxia, hyperammonemia, encephalitis, after seizures, or may be drug-induced.^6,50 Splenial lesions have been reported in seizures, anti-epileptic drug withdrawal or toxicity, alcohol abuse, encephalitis, and electrolyte derangements.^30,61 The clinical context, along with a review of biochemical findings, should help narrow diagnostic considerations. Sparing of the thalamus, brain stem, and cerebellum is a useful clue. In select cases, 1H-MR spectroscopy may serve as a problem-solving technique.
